Nedfällbara delar
Retract mechanical
Ø250mm TC 24V
Artikelnummer: 13 0650
0,00 kr
(rekommenderat pris)
| Product weight | Value |
|---|---|
| Net weight | 64kg / 141.10lbs |
| Sparepart for | Value |
|---|---|
| Main products > Thrusters > DC > ERL | ERL170/250TC-48V ERL170/250TC-24V |
| Main products > Thrusters > DC > ERV | ERV170/250TC-24V ERV170/250TC-48V |
| Main products > Thrusters > DC > SR_SRV_SRL | SRV210/250TCOBS SRL170/250TC SRV210/250TC SRV170/250TC |
-
DNV AiP Thruster retract composite housing SR Ø250 and Ø300
Conformity CertificateEngelskapdf
Retract mechanical
SP104776C
13 0650
28.09.2026
Guide till navigering av reservdelar
Nedan ser du toppnivå av reservdelsenheter tillgängliga för dig. Om du önskar en komponent inom den presenterade enheten, klicka på namnetiketten under bilden för att komma till en detaljerad reservdelslista för den enheten. Om inga ytterligare reservdelar finns tillgängliga betyder det att den aktuella enheten måste köpas som en helhet på grund av service- eller installationskrav.
+
-
⇔
PHOTO NOT AVAILABLE
2
Cable actuator
Artikelnummer: 150050
Kvantitet: 2
PHOTO NOT AVAILABLE
3
Cylinder head cap screw
Kvantitet: 4
M4x12 Unbraco
PHOTO NOT AVAILABLE
5
Sensor cable SR
Artikelnummer: 150055
Kvantitet: 1
PHOTO NOT AVAILABLE
7
Hex lock nut
Kvantitet: 1
DIN 985 - M4 x 0,7 A4
PHOTO NOT AVAILABLE
8
Hex socket set screw flat point
Kvantitet: 1
DIN 913 - M4 x 20 A4
PHOTO NOT AVAILABLE
9
Hex socket flat countersunk head screw
Kvantitet: 2
DIN 7991 - M4x30 A4
Kits
-
SM143716 20 1180 A
-
SM170663 SM170663
-
SM175313 SM175313
-

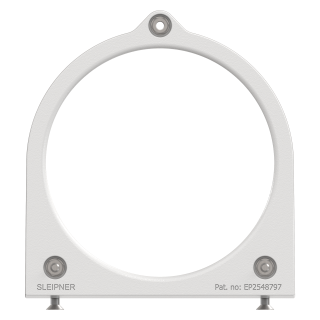

Retract ring support kit 250mmSM900585 6 2143-OBS
-
SM901300B 10 2076
-
SM901301 10 2077
-
SM901479 140100

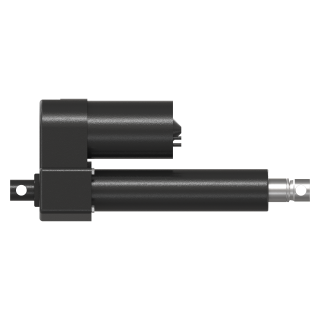

1 Actuator kit 24 v Retract 185-250mm
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Locking bolt
Artikelnummer: 140003
Kvantitet: 1
PHOTO NOT AVAILABLE
3
Split pin
Kvantitet: 2
ISO 1234 - 3,2 x 20 A4
PHOTO NOT AVAILABLE
5
Flat washer without chamfer
Kvantitet: 1
DIN 125 - A 13 A4
PHOTO NOT AVAILABLE
6
Grommet kit
Artikelnummer: SM167587
Kvantitet: 1
2 Adapter water proof SRV
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Adaptor for seals SRV sensor
Artikelnummer: SM-131070
Kvantitet: 1
PHOTO NOT AVAILABLE
2
O-ring Ø14x3mm
Kvantitet: 1
--
PHOTO NOT AVAILABLE
3
Composite shaft for SRV sensor
Artikelnummer: SM-131071
Kvantitet: 1
PHOTO NOT AVAILABLE
4
O-ring Ø18x3mm
Kvantitet: 1
--
PHOTO NOT AVAILABLE
6
DIN 125 - A 4,3
Kvantitet: 2
Flat Washer
PHOTO NOT AVAILABLE
7
ISO 7045 - M4 x 40
Kvantitet: 2
Screw
PHOTO NOT AVAILABLE
8
ISO 7045 - M4 x 55
Kvantitet: 2
Screw

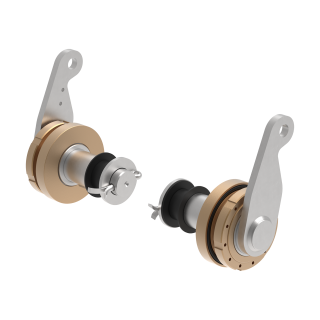

3 Horisentalaxel kit SRV130
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Stuffing box
Artikelnummer: SM-123053
Kvantitet: 2
PHOTO NOT AVAILABLE
2
Lifting arm complete PS
Artikelnummer: 140027
Kvantitet: 1
PHOTO NOT AVAILABLE
3
Lock nut
Kvantitet: 2
M64
PHOTO NOT AVAILABLE
4
O-ring
Kvantitet: 2
DIN 3771 - 72,62 x 3,53
PHOTO NOT AVAILABLE
5
O-ring
Kvantitet: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
6
Thrust washer
Kvantitet: 4
Ø48-Ø28 H=1,5
PHOTO NOT AVAILABLE
7
Flat washer without chamfer
Kvantitet: 2
DIN 125 - A 29
PHOTO NOT AVAILABLE
8
Split pin
Kvantitet: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
9
Split pin
Kvantitet: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
10
Sleeve bearing
Artikelnummer: 140019
Kvantitet: 2
PHOTO NOT AVAILABLE
11
Wype Ring
Artikelnummer: 140030
Kvantitet: 2
PHOTO NOT AVAILABLE
12
Turn ring
Artikelnummer: 6 2140
Kvantitet: 2
PHOTO NOT AVAILABLE
13
Sleeve bearing
Artikelnummer: 140060
Kvantitet: 2
PHOTO NOT AVAILABLE
15
Split pin
Kvantitet: 2
ISO 1234 - 3,2 x 20

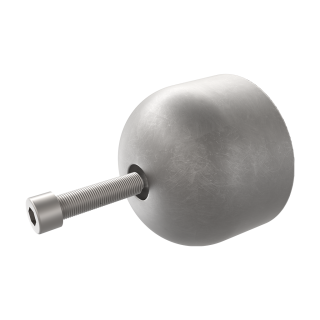

4 Aluminiumanod SP/SE/SH 125 till 300
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Anode - aluminium
Kvantitet: 1
--
PHOTO NOT AVAILABLE
2
Hex socket cap screw
Kvantitet: 1
DIN 912 - M6 x 30

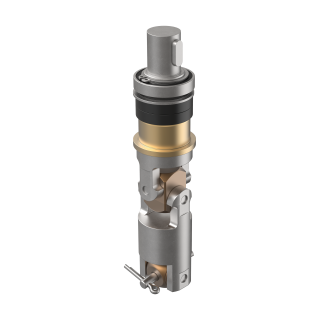

5 Retract drive shaft kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Retaining ring for shaft
Kvantitet: 1
DIN 471 - 25 x 1,2
PHOTO NOT AVAILABLE
2
Deep groove ball bearings single row with two RS1 seals
Kvantitet: 1
SKF 2RS1W 61805-2RS1
PHOTO NOT AVAILABLE
3
Spring Retaining Ring
Kvantitet: 1
DIN 472 - 35 x 1,5
PHOTO NOT AVAILABLE
4
Rotary lip seal
Kvantitet: 2
25 x 35 x 7
PHOTO NOT AVAILABLE
5
Bearing Sintered
Kvantitet: 1
Ø25xØ32xL20
PHOTO NOT AVAILABLE
6
Parallel Key
Kvantitet: 1
DIN 6885 - A 6 x 6 x 16
PHOTO NOT AVAILABLE
7
Flexible drive shaft
Kvantitet: 1
250 mm
PHOTO NOT AVAILABLE
8
Locking pin
Kvantitet: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
9
Split Pin
Kvantitet: 1
DIN EN ISO 1234 - 3,2x12

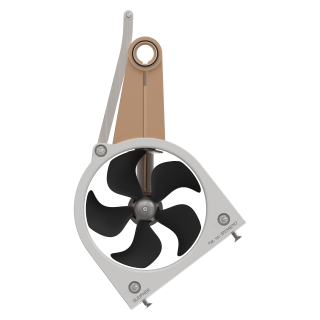

6 Tunnel kit retract Ø250mm TC, complete
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
2
Thrust washer
Kvantitet: 4
Ø10 x 18 x 1mm
PHOTO NOT AVAILABLE
3

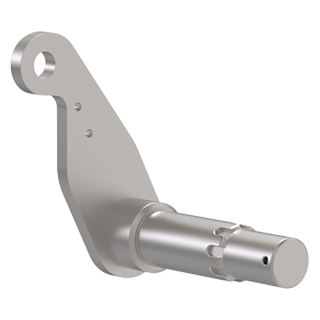

Lifting rod
Artikelnummer: 140007
Kvantitet: 1
PHOTO NOT AVAILABLE
4
Hex head screws
Kvantitet: 2
DIN 933 - M10 x 20
PHOTO NOT AVAILABLE
5
Sleeve bearing
Artikelnummer: 140024
Kvantitet: 2
PHOTO NOT AVAILABLE
6
Split pin
Kvantitet: 2
ISO 1234 - 3,2 x 20
PHOTO NOT AVAILABLE
7
Split pin
Kvantitet: 2
ISO 1234 - 6,3 x 44
PHOTO NOT AVAILABLE
8
Wype Ring
Artikelnummer: 140030
Kvantitet: 2
PHOTO NOT AVAILABLE
9
O-ring
Kvantitet: 2
DIN 3771 - 48,9 x 2,62
PHOTO NOT AVAILABLE
10
Turn ring
Artikelnummer: 6 2140
Kvantitet: 2
PHOTO NOT AVAILABLE
12
PHOTO NOT AVAILABLE
14
Tunnel bracket
Artikelnummer: 140010
Kvantitet: 1
Kits
-
SM143716 20 1180 A

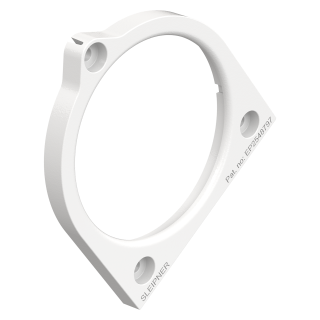

7 Twist ring kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
3
DIN 934 - M10
Kvantitet: 8
Hex nut
PHOTO NOT AVAILABLE
4
DIN 7991 - M10x70 A4
Kvantitet: 4
Hex socket flat countersunk head screw
PHOTO NOT AVAILABLE
5
Sliding band
Artikelnummer: 140151
Kvantitet: 2
_3@72dpi.png)
PHOTO NOT AVAILABLE
7
DIN 125 - A 10,5
Kvantitet: 6
Flat washer without chamfer
PHOTO NOT AVAILABLE
8
DIN 985 - M10 x 1,5
Kvantitet: 6
Hex lock nut
PHOTO NOT AVAILABLE
9
ISO 1234 - 3,2 x 20
Kvantitet: 4
Split pin
8 Gearleg SRV170/210 replacement kit
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Mechanical sealing Ø35
Kvantitet: 1
--
PHOTO NOT AVAILABLE
2
Bushing for drive pins
Kvantitet: 1
--
PHOTO NOT AVAILABLE
3
DIN 3771 - 43,7 x 3,55 - NBR
Kvantitet: 1
O-ring
Kits
-
SM143716 20 1180 A

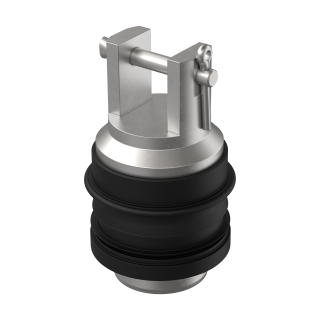

9 Nedre ledkit SRV130..210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Split pin
Kvantitet: 1
ISO 1234 - 3,2 x 12
PHOTO NOT AVAILABLE
2
Locking pin
Kvantitet: 1
Ø6 L45,5
PHOTO NOT AVAILABLE
3
Drive shaft lower link
Kvantitet: 1
PHOTO NOT AVAILABLE
4
Mechanical sealing Ø35
Kvantitet: 1
PHOTO NOT AVAILABLE
5
Bushing for drive pins
Kvantitet: 1

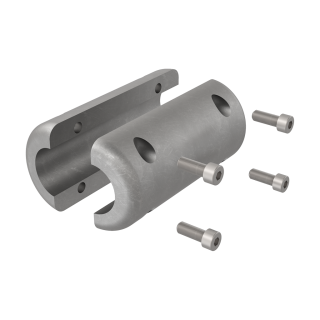

10 Offeranod SRV/SRL stång
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
DIN 934 - M4
Kvantitet: 4
Hex nut
PHOTO NOT AVAILABLE
2
Anode SRV
Kvantitet: 1
Anode SRV
PHOTO NOT AVAILABLE
3
Anode SRV
Kvantitet: 1
Anode SRV
PHOTO NOT AVAILABLE
4
DIN 912 - M4 x 12
Kvantitet: 4
Cylinder head cap screw
11 Växelhus Komplett SE170/210
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
Kits
-
SM143716 20 1180 A

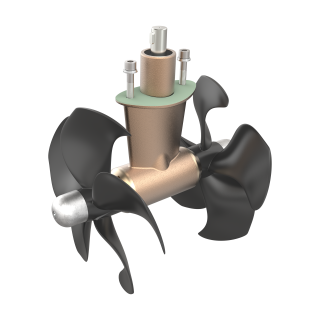

12 Gearleg SE170/210 w/out propeller
Below is a sub-level assembly of spare part groupings. If no additional spare parts are available,
it means that the current assembly group must be purchased as a whole due to service or installation requirements.
+
-
⇔
PHOTO NOT AVAILABLE
1
Shaft seal
Kvantitet: 1
DIN 3760 - AS - 22 x 40 x 7 - NBR - Carbon Steel
PHOTO NOT AVAILABLE
2
Bolt
Kvantitet: 2
DIN 912 - M10 x 50
PHOTO NOT AVAILABLE
3
Lock washer
Kvantitet: 2
DIN 128 - A10
PHOTO NOT AVAILABLE
4
Washer
Kvantitet: 2
DIN 125 - A 10,5
PHOTO NOT AVAILABLE
6
Drive pin
Kvantitet: 2
ISO 8734 - 8 x 37
PHOTO NOT AVAILABLE
7
Washer for propeller
Kvantitet: 2
DIN 125 - A 17
PHOTO NOT AVAILABLE
8
Nut for propeller
Kvantitet: 2
DIN 985 - M16x2
Kits
-
SM143716 20 1180 A
Ansvarsfriskrivning
Sleipners garantier gäller endast om original reservdelar används. Installatören har ensam ansvaret för monteringen av reservdelarna. Montera inte reservdelar såvida du inte har full kunskap och kompetens. Om reservdelen är felaktigt monterad är Sleipner Group inte ansvarig för eventuella skador som uppstår.
Informationen i dokumentet var korrekt när det publicerades. Sleipner Group tar dock inte ansvar för eventuella felaktigheter eller bortfall. Kontinuerlig produktförbättring kan ändra produktspecifikationerna utan föregående meddelande. Följaktligen kan Sleipner Group inte ta ansvar för eventuella skillnader mellan produkt och dokument.
-
