Rattpumpar
Rattpump 26ccm3 med fläns
Artikelnummer: 72061
Rattpump för hydraulisk styring med fläns
26 cm³

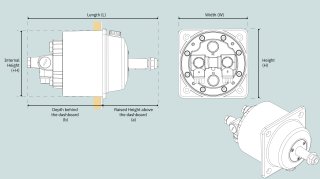

| Dimensions | Value |
|---|---|
| (H) Höjd | 127mm / 5.00in |
| (+H) Extra höjd | 121mm / 4.76in |
| (L) Längd | 237mm / 9.33in |
| (W) Bredd | 127mm / 5.00in |
| (a) | 102mm / 4.02in |
| (b) | 135mm / 5.31in |
| Material | Value |
|---|---|
| Product colour finish | Svart |
| Hydraulisk | Value |
|---|---|
| Non-return valve | Ja |
| Hydraulic steering | Value |
|---|---|
| Rudder rotations with cylinder 71030 | 4,2 Recommended |
| Pump displacement (ccm) | 26 |
| Port dimensions BSP A/B | 1/4” |
| Rudder rotations with cylinder 71060 | 4,8 Recommended |
| Rudder rotations with cylinder 71090 | 8.3 |
| Helm pump type | with flange |
| Oil | Value |
|---|---|
| Oil type specifications | ISO VG15/DIN 51524-3 HVLP |
| Ideal vessel integration | Value |
|---|---|
| Typical vessel class | Yrkesbåt, Motorbåt, Segelbåt |
| Product weight | Value |
|---|---|
| Net weight | 3.599kg / 7.93lbs |
-
